Name: Case Study B
SKU: 0

Performance

Moisture and Mildew

Resistant

Soundproofing &

Noise Reduction: 30-50 dB

Wind

Resistance

Seismic Resistance

Rating 8

Service Life

30 years

Configuration

Building Structure	Integral roof structure, Corrosion-resistant steel
	Integral ﬂoor structure, Corrosion-resistant steel
Doors	Material	steel door
	Speciﬁcation（mm）	840*2035
	Opening method	inward opening/outward opening
	Material	plastic steel
Windows	Speciﬁcation（mm）	500500 /800500/ 8001100 / 11201100
	Opening method	sliding
	Glass	4mm+9A+4mm Insulating glass
	Accessories	screen window, anti-theft guardrail
Wall Panel	Overall thickness（mm）	50mm/75mm
	Color-coated steel thickness（mm）	0.4
	Core material and bulk density（kg/m³)	30mm/50mm SPS
Flooring	Material	Cement ﬁber board + rubber ﬂoor
	thickness（mm）	30mm
Insulation Course	Roof	50mmPU
	Floor	Optional
Roof Drainage	Column-Integrated Drainage System	50 PVC downpipe
Electrical Provisions	Outdoor: Connector: 2P (grounded) 32A industrial plug Interior: 2*36W single-tube ﬂuorescent lamps		110-position full-plastic lighting box 3ﬁve-hole sockets 1air conditioner socket 1single large-button switch

*For reference only, subject to actual requirements.

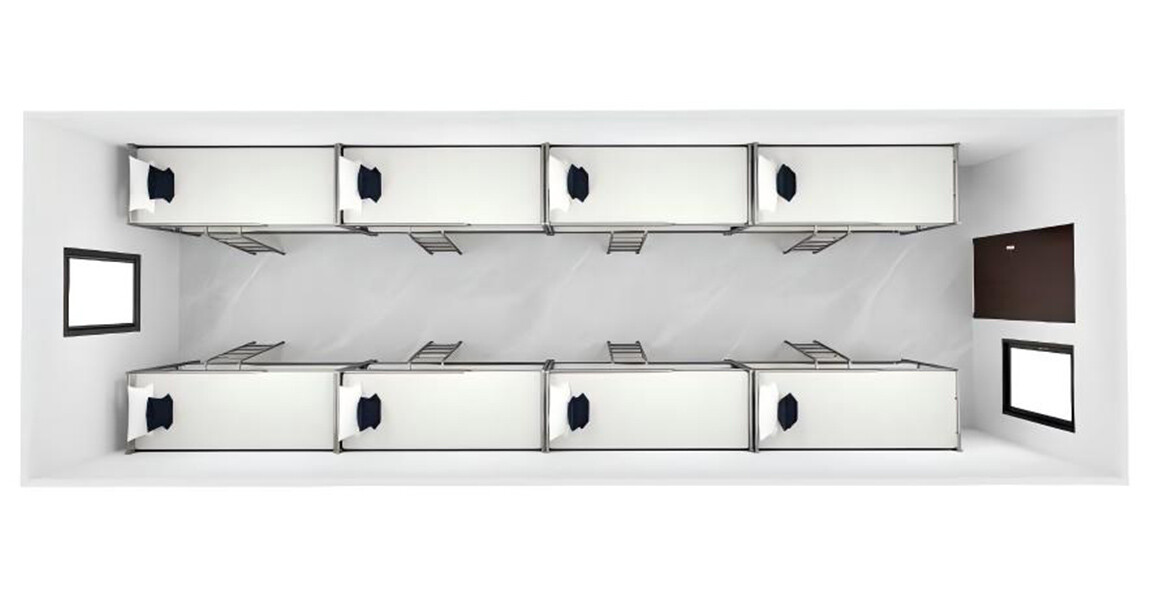

Layout Diagram
